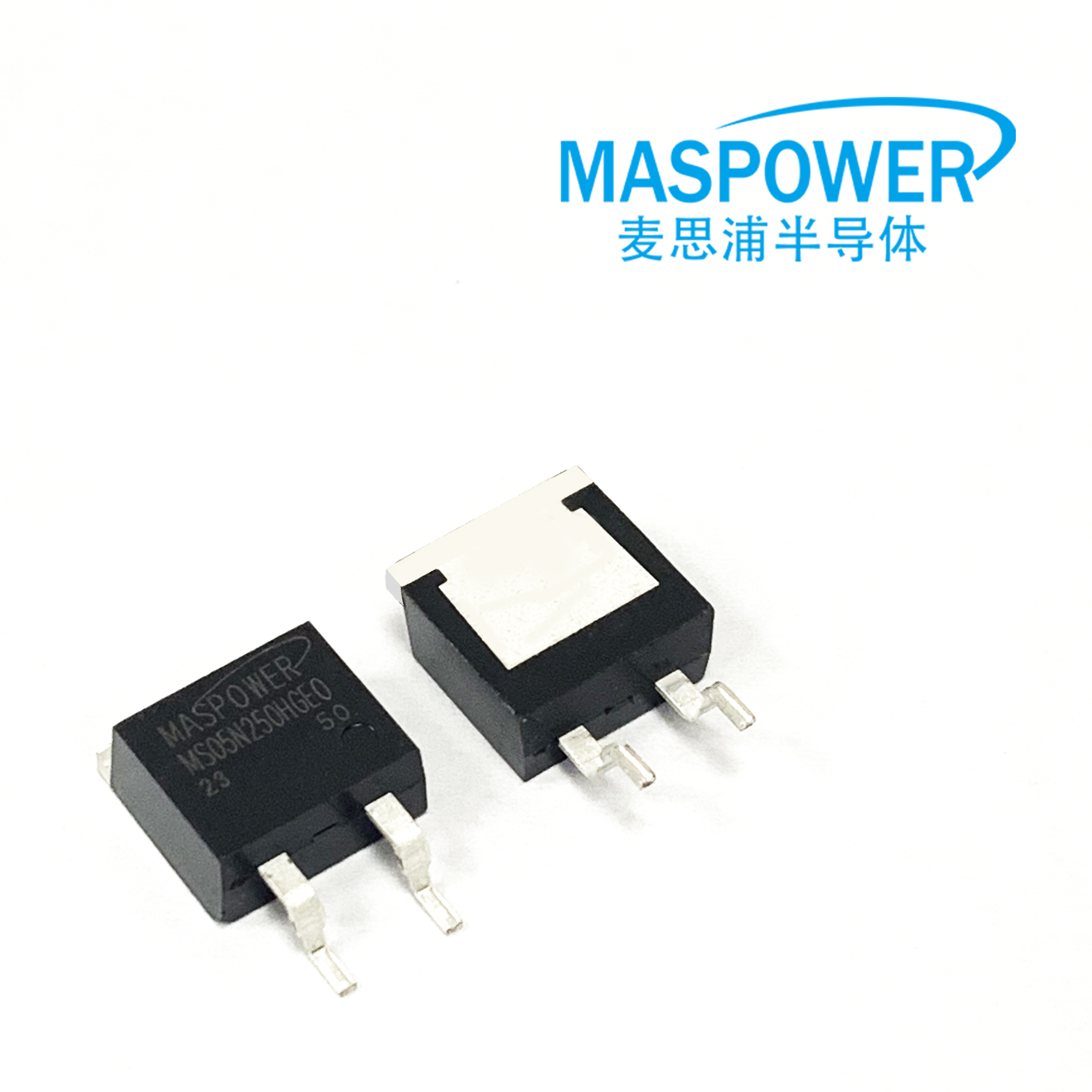

MS05N250HGE0 is a 2500V ultra-high voltage MOSFET launched by Maspower Semiconductor, further expanding the product lineup of ultra-high voltage series MOSFETs.
This product adopts planar technology, 500mA current, 2500V voltage, on-resistance of 150Ω, TO-263 (D2PAK) package, and is used in new energy, communications, medical, photovoltaic, aerospace and other fields.
Features
² 100% avalanche tested
² Fast Intrinsic Diode
² Gate charge minimized
² Very low intrinsic capacitances
² High speed switching
Product Parameters
Product Name | VDS | ID(25°C) | VGS | Qg | Qgs | Qgd | Package |
MS05N250HGE0 | 2500 V | 500 mA | ±30 V | 7.4 nC | 0.7nC | 5.3nC | TO-263 |
Applications
l High Voltage Power Supplies
l PV Inverter
l Switching applications
Availability
MS05N250HGE0 is now available and on sale.
